Administration¶

The Administration section provides system-wide management tools available to users with administrator privileges.

Administration¶

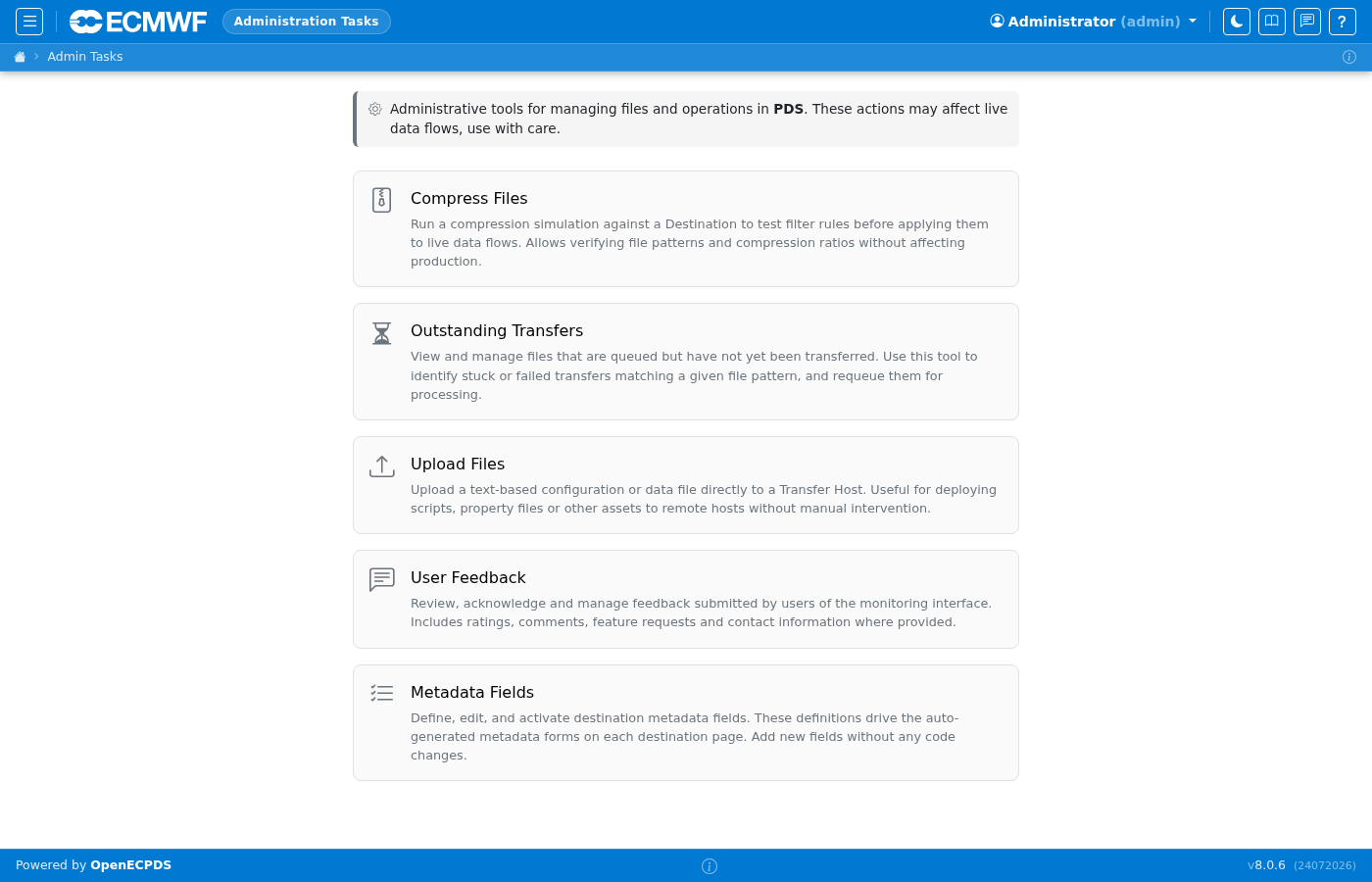

The admin home page provides access to: Destination Metadata field configuration (defining custom fields attachable to destinations, e.g. contacts, procedures, Opsview notes), transfer requeue (bulk re-scheduling of failed transfers), file upload (injecting files directly into the data store), the audit/feedback log, Product Descriptions (per-product/type Tips and Descriptions), TLS certificate management, monitoring status colors, Critical Password setup, and the destructive Purge All Data reset tool.

Storage Lifecycle Policies¶

At /do/admin/storagepolicies, administrators define and test replica-retention policies, inspect dry-run estimates and persistent savings counters, and set per-file operator holds. Opt-in enforcement preserves original copies until normal expiry; advanced settings include pressure watermarks and lazy replication. File and transfer details show retention status and link to hold management. See Storage Lifecycle Policies.

Network Weather¶

/do/admin/networkweather controls bounded passive dissemination and acquisition collection for selected local and Continental Movers. Collection starts disabled. An administrator can Activate collection or Deactivate collection at runtime without restarting the Master, Monitor or Movers. The same page separately controls automatic historical discovery and scheduled probes. All optional features default off. Empty measurements mean unavailable coverage, not healthy paths.

The page is organised in tabs: Overview (state, activation, capabilities, storage and counters), Manual scope, Automatic selection, Probes, Sources and Measurements. The last selected tab is restored after saving. The probe results, source registration and measurement tables can be searched, sorted and paged in the same way as the Storage Lifecycle Policies table; states and outcomes are shown as coloured badges and paths without observations are marked no coverage. A Network Weather Guide button opens a short user guide, and the icon on each card expands a short explanation of its content.

Paths, source/transfer-group scopes, pins, exclusions and probe policies are edited with builders rather than free text: choose a source (or Other source for a Continental Mover root), filter and select an active Dissemination Host, then press Add. The Host target and method are filled in from the Host configuration; duplicates, limits, invalid characters and probe mode/interval combinations are refused immediately, and saved entries that no longer match an active Dissemination Host are flagged. Pins, exclusions and probes can also be picked from the approved candidates. Probe Port, Mode and Interval are in a shared settings block used by both add methods. Selecting a Host or candidate fills the port from that Host's transfer-module Properties (including the module's default when unset). Selecting another Host or candidate refreshes it; manual overrides remain possible. When no configured port is available, a usual port is suggested and labelled for verification, or the port must be entered manually. Saved policies keep their explicit port; Host changes do not rewrite them. The builders only assist entry; every save is validated. Selector choices (Movers, transfer groups and active dissemination/acquisition Hosts, up to the deployment's maxHostChoices) can be updated with Refresh choices. Without JavaScript, the underlying one-entry-per-line fields remain usable. Path builders hide entries already added for the selected source, including in the approved-candidate shortcut. Removing an entry makes it selectable again; the same Host remains available for other sources. Probe builders still allow the same path with different probe settings, but hide exact policies already added from both Host and approved-candidate selectors. Changing the port, mode or interval refreshes those choices; removing a policy makes it available again. Source/group candidate discovery skips Hosts with invalid path configuration and continues with valid Hosts. A warning reports the number of distinct rejected Hosts; expand Rejected Host IDs and reasons to identify and correct them. The report reflects the latest candidate check during Save or automatic reassessment and is refreshed on the next check; it is not a permanent rejection list. Host configurations and ordinary transfers are not modified. Database errors, discovery limits and invalid individually approved paths still fail explicitly. The source/group builder allows one transfer group per source: its group selector and Add button are disabled for a source already listed, until that entry is removed. The same transfer group can still be assigned to other sources. Save errors identify policy sections and offending paths, and line numbers for probe and source/group input. Pins, exclusions and probe paths must first appear in Approved candidates; a changed Host target or method requires updating its approval. If a save fails, submitted entries and switches remain in the form so they can be corrected and submitted again. These displayed edits are not saved until the Master accepts the request; reloading the page retrieves the saved configuration. Refresh choices uses the Monitor's shared confirmation modal if it would discard edited entries, unfinished builder input or switch changes. Cancel keeps the current form.

Deployment capacity¶

Capacity is configured in the Master's properties file under [NetworkWeather]. The page displays the effective limits and validates entries against them. These capacity values do not need to be duplicated in the Monitor or Mover configuration. Restart the Master after changing them; lowering limits below an existing saved policy requires reducing that policy first. Collection and probe activation remain separate runtime switches in the administration UI.

For example, a larger deployment can use:

[NetworkWeather]
maxSources=80
maxSelectedPaths=1000
maxCandidates=10000
maxProbePolicies=200
maxHostChoices=20000
maxConfigurationBytes=4194304

These are sizing examples, not throughput guarantees. Increasing the policy count does not automatically increase probe execution frequency or collection capacity. Larger configurations also require sufficient database storage capacity.

Large browser submissions also need adequate Monitor form capacity. Set, for example, maxFormContentSize=16777216 under [MonitorPlugin] in the Monitor's properties file and restart it. The default is 200,000 bytes; budget for all submitted fields together and URL encoding, not just one policy field. Check any reverse proxy's request limit too.

For many selected paths on an individual Continental Mover, its control response may exceed the default 65,536-byte bound. Set [NetworkWeather] maxControlResponseBytes to an appropriate positive byte count on Movers and relays receiving those replies, and restart those services. This setting is local to those services, not supplied by the Master.

Automatic selection and historical discovery¶

In the Automatic selection tab, approve explicit candidates using source | host ID | configured target | transfer method | type, where type is DISSEMINATION or ACQUISITION, or approve bounded source | transfer group scopes. Group scopes discover active dissemination and acquisition Hosts without maintaining an individual list. A source/group approval is administrative scope, not evidence that this source performed a historical transfer. The candidate, selected-path and emitting-source limits are deployment-configurable (defaults: 500 candidates, 50 selected paths and 20 sources). Pins, exclusions and probe policies reference explicit approved candidates; exclusions override pins. Saving the automatic policy does not activate passive collection.

Enable Automatic selection to reassess daily, or request an earlier reassessment. Enable Allow bounded historical SQL discovery separately to rank candidates using seven days of upload activity, successful retrievals and destination-scoped trouble samples. Retrieval samples use downloaded DataFiles linked to the acquisition Host (up to 50 recent files per Host, 100 Hosts per assessment, with a resumable Host cursor); deleted DataFiles cannot contribute. Upload addresses are matched only to approved dissemination targets, so a retrieval is not inferred from an upload to the same address. Historical rows never establish actual emitting-source identity. Ranking mixes activity, trouble and source/method diversity. Existing valid coverage is retained on partial input or failure; complete runs can replace at most 10% of the configured selected-path capacity (rounded down, minimum one; five with the default capacity) of unpinned, non-troubled paths per day, and only with materially stronger evidence. Known invalid or excluded paths are removed before optional history work, even if that later work fails. An empty automatic selection suspends collection without erasing activation intent. If recording a pruned scope fails, removed paths remain stopped in that Master; the page warns to retry before restarting, since the last saved scope still exists.

Use Find candidates from successful transfers in Automatic selection to search a user-chosen period of 1–30 days, optionally filtered by protocol (ECtrans module, such as FTP or SFTP). The protocol filter uses the Host's current transfer method and is applied in the database search. Choose the source to assign explicitly: transfer history identifies the successful Host but not its historical source. Only currently active dissemination Hosts with a DONE history entry, and acquisition Hosts with a successfully downloaded DataFile in that period, are suggested. Retrieval timestamps come from the DataFile's recorded completion time, not from a later dissemination. Already-approved paths for the chosen source are omitted from the preview. Review and select matches, then add individual Approved candidates or source/group scopes. Group scopes also permit Hosts without a recent success and support only one group per source. Existing entries are preserved and duplicates are skipped; conflicting groups and capacity errors leave the form unchanged. The preview is searchable and paginated (50 Hosts per page), with selections retained across pages. Search results use maxHostChoices; adding paths uses maxCandidates. Click Save to persist the additions. Search failures and result-limit errors are displayed rather than silently returning incomplete results.

Historical discovery is separate: it ranks already permitted candidates using up to seven days of activity, volume and error signals. It neither populates approval lists nor limits selection to Hosts with successful transfers.

Policy, selection and discovery progress survive restart. Assessment counters and reasons are transient. Query errors and partial samples are visible in the administration status. Disable automatic selection before saving a fixed manual scope. Automatic policy changes are rejected during an in-flight reassessment; retry after it finishes. Historical discovery samples activity rather than providing an exhaustive history scan. Assess its database load on a test system before enabling it in production.

Scheduled diagnostics¶

Approve probes separately with: source | host ID | configured hostname | method | type | approved service port | mode | interval seconds. Both dissemination and acquisition paths support probes; the type is retained in the policy, result tables and Live Earth overlay. Review the explicit port against the real transfer-module service configuration; the scheduler never guesses a port, performs protocol login or sends credentials. TCP_CONNECT requires an interval of at least 60 seconds; MTR_ICMP and MTR_TCP require at least 300 seconds. New automatically selected paths do not acquire probe approval. MTR needs a JSON-capable mtr executable and suitable privileges on the actual emitting Mover.

Jobs run in the background on the selected local or Continental source, not on a substitute source. A missing tool, insufficient privileges, malformed output, no target response and missing source results are distinct from measured connectivity success. Intermediate-hop loss does not establish an end-to-end fault.

Completed diagnostics and source-unavailable notices are kept for one hour and do not survive a Master restart. They are not a permanent probe archive. Collection deactivation or probe-policy removal stops further scheduled work. Existing transfers and interactive diagnostics are unchanged.

Live Earth weather overlay¶

The Network Weather icon () in the Live Earth toolbar is shown while collection is active or its state cannot yet be confirmed. Click it to switch the overlay on (highlighted) or off (normal); it starts off. Its preference is saved in the browser, independently of transfer animation and other globe preferences. Enabling it displays a searchable table of permitted source/Host/method evidence, socket coverage, observation age and available diagnostic summaries, plus independent Host-location halos. Gray/absent evidence means unknown coverage, not healthy connectivity; orange delivery trouble is not a network-fault diagnosis. Unresolved coordinates (including internal addresses) do not create invented locations, but never hide the icon or permitted table rows. The Dissemination and Acquisition filters apply to their respective overlay paths.

Visibility follows the viewer's monitoring, Host and destination permissions. Paths lacking permitted retained delivery evidence are not disclosed to restricted viewers. Raw endpoint addresses, MTR hops, transfer IDs and administrative errors are not sent to the globe. Idle paths with previously permitted retained evidence show no recent observations, not zero-latency success. Viewing the overlay never starts collection or a probe.

When collection is disabled or suspended, the server returns no weather paths and the icon is hidden and the overlay cleared on the next refresh. Errors and stalled requests also clear stale evidence, but keep the icon available: its tooltip and opened panel show the failure rather than silently disappearing. A disabled collection overrides a saved on preference. The preference is retained, so it can resume when collection becomes available again.

Scope and runtime controls¶

The Manual scope builder stores paths as source | host ID | configured target | transfer method | type. Use the actual emitting Mover root, not its relay. The target and transfer method and type must exactly match an active dissemination or acquisition Host; these settings are checked again on activation. The limits come from the Master's deployment configuration. A blank scope clears the selection. Saving scope disables collection, requiring explicit reactivation.

Activation requires database readiness and verified registration for every selected source. The page displays blockers, registration state, five-minute observed counts and persistence health. Source loss after activation gates that source independently; it does not stop unrelated sources. Controls require administration permission and are audited.

Deactivation stops collection; source capture can take up to 60 seconds to stop. Measurements already being saved can finish; retained measurements are not erased. If recording deactivation fails, the Master stays stopped and reports the error: retry before restarting, because the previously saved activation intent can otherwise be restored. Ordinary transfer processing, KPI byte accounting and viewer-driven animation are not stopped.

The scope and activation intent survive Master restarts. Restored activation starts suspended until readiness checks succeed. Database problems can suspend collection; recovery can resume saved activation intent. Pending measurements and the current assessment do not survive a restart.

Source registration and transport¶

Updated Movers negotiate by default ([Server] networkWeatherNegotiation=yes). An explicit no remains a per-Mover opt-out. Negotiation alone captures nothing. Continental routes require [Security] rccSharedSecret signing at every hop. Deploy matching Master, Monitor, local relay and Continental Mover versions. Sources must be registered and verified before collection can start; the Sources tab shows their current registration state.

For a selected Continental source without a direct subscription, an operator can explicitly approve its existing Proxy Host on the Master:

[NetworkWeatherRelay]
continental-source.example=101

The key is the actual Continental Mover root; the value is the existing active Proxy Host ID, not an arbitrary URL or relay hostname. A subscribed local Mover from that Host's configured transfer group must be available to reach the Continental source. A failed source mapping does not stop verification of other sources.

The local relay must use [MoverProxy] trustAllCerts=no, valid HTTPS target names and an appropriate JVM truststore. Registration rejects HTTP, URL user credentials and trust-all certificate mode; shared request signing alone does not authenticate the source. All target alternatives must satisfy these checks. Keep service clocks synchronised: excessive clock differences can prevent measurements from being assigned reliable observation times.

Measurements and coverage¶

Collection records dissemination and acquisition GET outcomes and available socket measurements independently of Live Earth viewers. Acquisition evidence is attributed to the requesting transfer and destination, including individual GETs in indexed retrievals; listing and size queries are not counted as payload retrievals. Shared-file aliases do not fabricate additional destination evidence. Successful and failed transfer attempts and explicit cancellations can contribute evidence. Some early failures have no measurements. Other Host types (such as backup, replication and proxy) are not included.

Existing module socket-statistics settings still determine available measurements; acquisition payload GETs request diagnostics just as dissemination does, without overriding ectrans.socketStatistics="false". Late socket closures can supplement their recorded execution. The transfer detail page separates retrieval and dissemination socket measurements using the stored leg; unidentified legacy rows are not assigned to a leg by inference. Missing or dropped measurements mean coverage loss, not packet loss. Failures without socket measurements remain sending outcomes, not zero-valued connections. RTT, sent/received bytes, rates and other socket measurements are shown when available; missing values remain unavailable.

The Overview and Measurements tabs show collection and persistence health. Accepted observations may still be awaiting storage; acceptance alone does not mean they have been saved. Database failures, capacity limits and expired observations can leave coverage gaps. Transfer details show sending outcomes when available and identify missing provenance; the sending index is not a requeue count.

Deployment validation¶

1. Keep collection disabled and deploy matching components. Confirm database readiness on the administration page. Do not load the destructive full installation dump into a populated database. Schema operations require the site's database change procedure, backups and DBA review.
2. Configure approved Continental routes and verified HTTPS/signing, then save a small local and Continental scope. Wait for writer readiness and source registration. Activate from the administrator page; no service restart is needed for subsequent controls.
3. Exercise successful and failed deliveries, plain retries/requeues, cancellation, late socket cleanup, relay outages and service restarts. Check source capture, saved measurements and reported coverage gaps. Test with nobody viewing Live Earth, and compare transfer latency, database/pool load and ordinary byte totals against the disabled baseline.
4. Deactivate and verify that collection stops while transfers continue. Only enable in production after the test-system outcome and the normal deployment review are satisfactory.

Monitoring Status Colors¶

Administrators can configure the shared status palette at /do/admin/monitoringcolors. The settings cover product-generation, OpenView, and arrival/transfer statuses used by monitoring legends, indicators, and charts. Values are stored in the shared system configuration and must use #RRGGBB format. Saving a value equal to its built-in default removes the override; Reset All to Defaults removes every override. Changes apply immediately on the current Monitor and are picked up by other Monitor instances within 15 seconds.

Scheduler Traffic¶

Scheduler Traffic (/do/admin/schedulertraffic), linked from Administration Tasks, the start page and the administration menu, monitors the Master's current Proxy, Backup and Replication workers. Switch between the three types using the buttons above the table. The read-only page uses the same card/table style as Outstanding Transfers, with local filtering, sorting, pagination, manual refresh and a selectable auto-refresh interval (5 seconds by default).

Each row represents one current worker per data file, identified by the transfer that started it; aliases can share a file. It shows destination, transfer/data-file links where permitted, requested Target, worker phase, transfer status, source Mover when known, target Host, file size, start time and elapsed time. Starting, Processing and Finalizing describe the scheduler worker; the separate Transfer status describes dissemination, not whether this background copy has succeeded.

Completed workers disappear. This is neither a waiting queue nor an outcome history; consult the transfer history for completed or failed operations. Disabled schedulers are explicitly identified, and connection errors are shown rather than reported as an empty successful snapshot. Replication can involve several members of a Mover group; Proxy/Backup select the source internally and Proxy Host selection may change during an attempt. File size is not bytes moved: these blocking operations do not expose reliable live percentage or throughput.

Refreshing the page does not start transfers or change scheduler behaviour. Access follows the normal administration URL permissions (/do/admin/schedulertraffic).

Operational Event Journal¶

Operational Event Journal (/do/admin/eventjournal) monitors and controls the Master's OpenTelemetry database queue. Its Health, Collecting new events and Delivering queued events tabs show pending count, oldest admission timestamp and age, runtime failures, collection/delivery state, queue trend and configured warning/critical thresholds. A drain estimate appears only after enough healthy browser-collected samples show a measurable decrease. The page uses the administration card layout, selectable auto-refresh (30 seconds by default), manual refresh, contextual help and an Event Journal Guide.

The task is greyed out when journaling is disabled on the Master. Master connection failures appear as unavailable rather than disabled. Pending rows can remain while journaling is disabled. Queue values are scoped to the active owner; unavailable measurements are not shown as zero.

Persistence failures produce red attention indicators on the task card and menu entries, with banners on the home and Admin Tasks pages. A successful admission confirms recovery and changes the indicator to yellow: the failure count remains visible until Master restart, because those events used best-effort delivery. Export or replay failures also require attention; unacknowledged records remain pending for automatic retry. Administrators can pause/resume native OpenTelemetry collection and queue delivery at runtime. Collection pause does not affect Splunk/file output. Delivery pause keeps persistence active, so the queue can grow; an already in-flight export may complete. Both controls reset on Master restart and are recorded in the Master session audit log. Runtime counters reset on restart, but database rows survive. The page exposes no payloads, credentials, purge or force-retry controls.

Access requires administration permissions on the Monitor and Master. See Event logging for configuration, delivery guarantees and operational limits.
